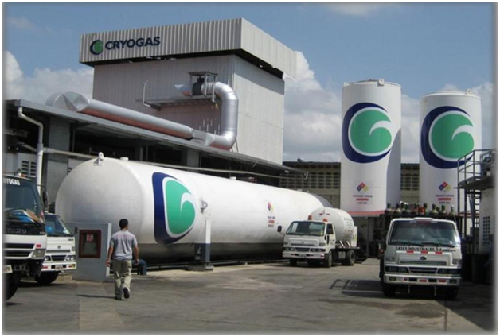

Cryogenic Tanks

  • Product Description: Cryogenic storage tanks for LIN, LOX, LAR, LCO2, LN20, LNG
  • Arrangement: Vertical (Horizontal in option)
  • Capacity: Upto 40 KL
  • Pressure Range: From 18 to 37 bar
  • Design Temperature: -196°C
  • Design Codes: EN 13458-2 or ASME
  • Insulation: Perlite + Vacuum
  • Materials Used: Inner vessel in stainless steel,outer vessel in carbon steel
  • Outer Finishing: 3 layers, finished with painting in white
  • Piping Arrangement: All stainless steel pipework and valves
  • Instrumentation: Analog pressure and content gauge (transmitters optional)
  • The Equipment Include: Pressure build up vaporizer, Safety relief devices for the inner and outer vessel, complete plumbing arrangement for normal operations
  • Lifting Lugs: Stainless steel
  • Saddles: Included and in stainless steel
  • Transport Dimensions: Optimized for easier handling and transport
  • In Option: Telemetry system, bursting discs, condensation coil, auxiliary liquid line, among it
